DIMENSIONS
Weight excl. power supply: 50.7kg | 111.6lbs
+ 2.1kWh battery: 63.7kg | 140.2lbs
+ 3.1kWh battery: 68.7kg | 151.2lbs
Height: 1,040mm | 41”
Seat height: 815mm | 32”
Width (handlebars): 820mm | 32.3”
Length: 1,820mm | 72”
Wheelbase: 1215mm | 47.8
PERFORMANCE
Max speed: 50km/h | 30mph (45km/h EU). High torque geared drivetrain. Wheelbase: 1215mm | 47.8”
DRIVE TRAIN
All wheel drive with 2 x 1kw Flux² motors: Brushless DC air cooled. High durability planetary geared system. Fully splined gear interfaces. Sealed bearings. Active heat management. Active venting for residual moisture.
BRAKES

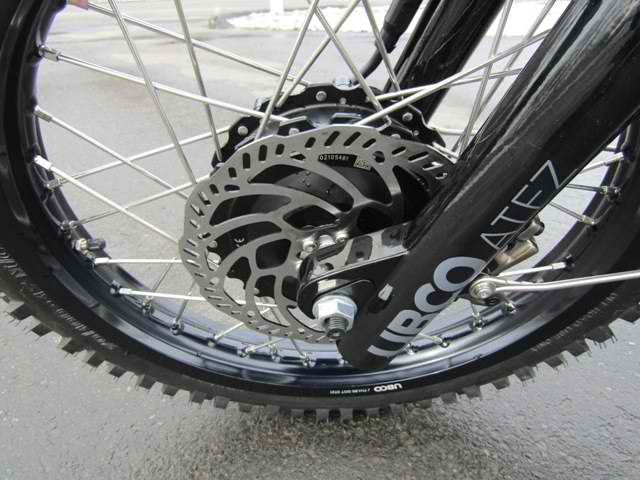

UBCO Quadratic² brake system: Hydraulic & regenerative brakes operate together. Active regenerative braking (brake activated): Independent front and rear brake control. Passive regenerative braking (off throttle). DOT approved hydraulic brakes. 203 x 2.3mm rotors. DOT approved Dash 3 brake lines.

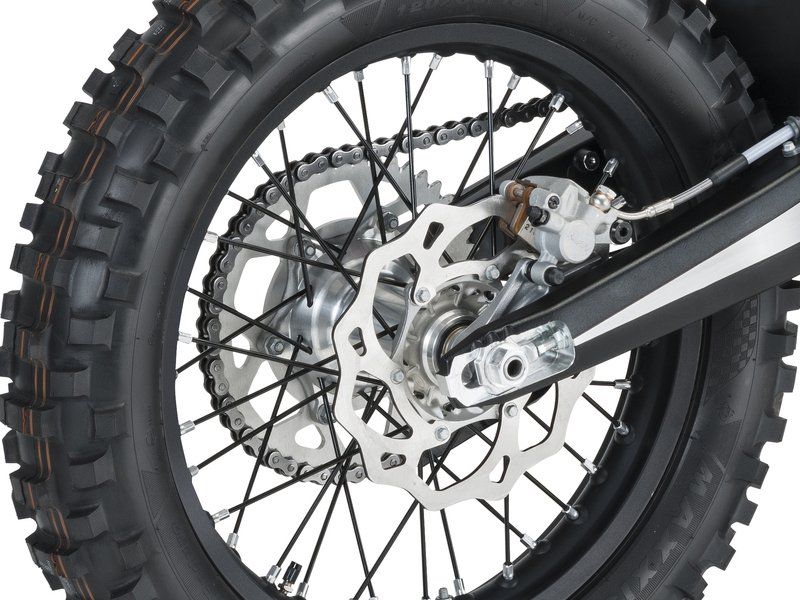

WHEELS
9ga stainless steel spokes. Tangential double-crossed lacing pattern. 17×1.85” aluminum rims (DOT compliant). 17×2.75” off-road knobbly tires.

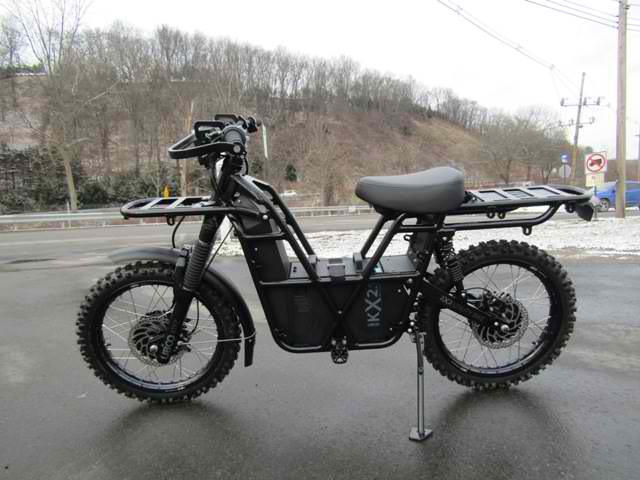

STRUCTURE
Payload (incl. rider): 150kg | 330lbs Super X step through frame: 7027 alloy. Front and rear racks standard. 19 drop forged attachment lugs on sub frame & rack. Dual kickstands (stand bike on either side).
SUSPENSION

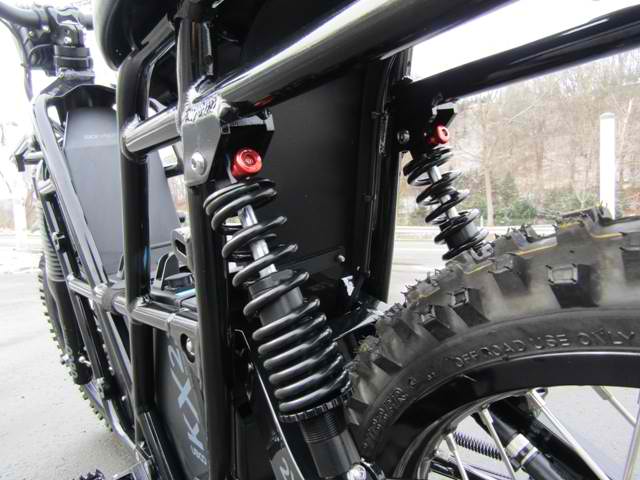

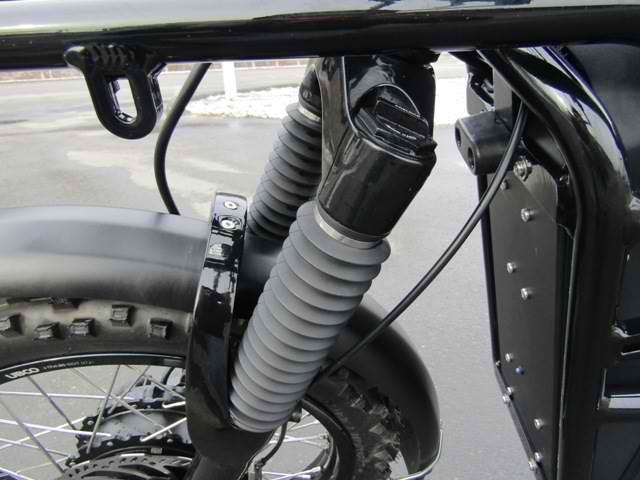

UBCO ATFZ 130mm front suspension: Tapered chromoly steerer, chrome steel stanchions, alloy lower (corrosion resistant). Coil spring with hydraulic dampener. Preload & rebound adjustment. UBCO ATF 120mm rear suspension: Coil over spring with hydraulic dampener. Preload & rebound adjustment.
USER CONTROLS

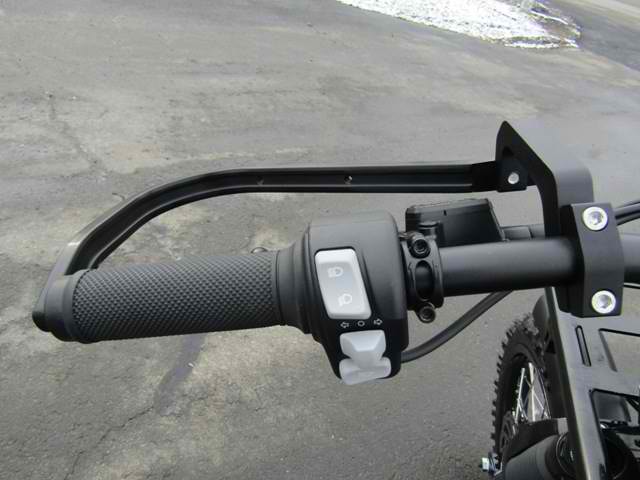

Fully electronic throttle control. Handlebar mounted momentary switch control for horn. Keyless fob operation utilises code hopping technology, hard to clone or hot wire. Kill switch can be programmed for on/off.
POWER SUPPLY
Match the capacity to your needs: 2.1kWh or 3.1kWh. UBCO dual safety system: Active Safety: UBCO ‘Scotty’ battery management system (BMS). Real time performance and safety monitoring. Passive Safety: IP66 rated sealed alloy enclosure. Vented enclosure with venting pathways. 3400 mAh high safety factor INR (LiNiMnCoOâ‚‚) 18650 lithium ion cells. Designed for disassembly at end of life.
COMMUNICATION
Cerebro² vehicle management system (VMS): Integrates all electronic and electrical functions of the vehicle. Provides control and updates with Bluetooth 5.0. Vented waterproof enclosure with sealed automotive connectors. Isolated CAN bus for easier integration of future CAN devices. CAN communication with power supply. Support for optional UBCO ‘Communicator’ telematic control unit for fleets.
VEHICLE CLASS
WMC PIN coded off road vehicle. NOT road registrable: EU: CE Compliant for off-road use in Europe. Can be registered as a farm/work vehicle in some European jurisdictions. AU: RVCS approved for off-road use in Australia. Can be approved for a conditional registration for farm use. NZ: Compliant for off-road use in NZ.
CHARGING
10amp alloy fast charger. Charger detect disables bike when charging.
LIGHTING

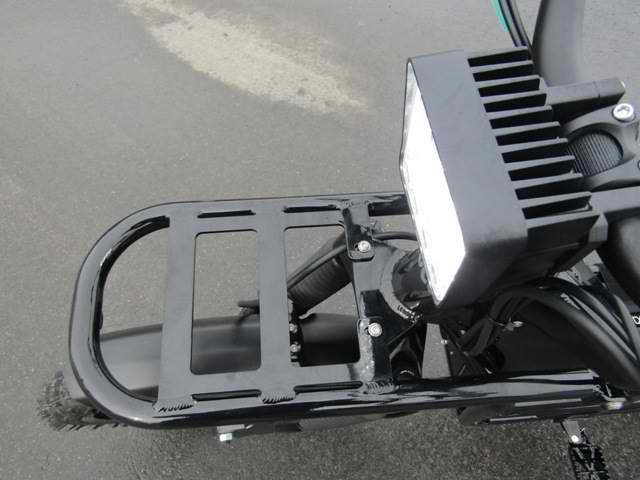

Powerful 2400 lumen floodlight headlight. Compact and lightweight. Environmentally sealed. LED rear brake lights.
SECURITY
Battery locks to frame. Ability to track & trace with optional TCU.
2X2 FIELD KIT
Fastens under the lift-up seat. Contains user manual and tools to set up and maintain your bike.
